Fuse box diagram (fuse layout), location, and assignment of fuses for Jeep Renegade (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023).
Checking and Replacing Fuses
The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt.
Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Check those fuses first that protect the failed component, but check all the fuses before deciding that a blown fuse is not the cause. Replace any blown fuses with another with the same amperage (same color) and check the component’s operation. To replace a fuse use the extractor attached to the fuse cover (located on the inside of the engine compartment fuse cover.
The fuses are grouped into four controllers located in the engine compartment, under the instrument panel and on the inside of the left side cargo trim panel.
WARNING!
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, gearbox system) or steering system blows, contact an authorized dealer.
Engine Compartment Fuse Box Diagram

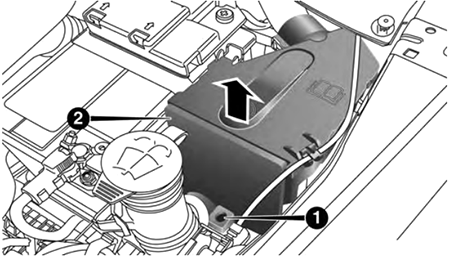

The engine compartment fuse panel is located on the left side of the engine compartment.
- Slowly turn the screw (1) counterclockwise.
- Slowly release the screw (1).
- Remove the fuse cover (2) by sliding it upward.
| № | Maxi Fuse | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|---|
| F01 | 70A Tan | - | - | Module Body Computer |
| F02 | 70A Tan | - | - | Module Body Computer, Rear Distribution Units |
| F03 | - | 20A Blue | - | Controller Power Supply Body Computer |
| F04 | - | 30A Pink | - | Brake Control Electronics Module |
| F05 | 70A Tan | - | - | Electric Power-Assisted Steering |
| F06 | 20A Yellow / 70A Tan | - | - | Engine Cooling fan |
| F07 | 40A Orange / 50A Red | - | - | 2015-2021: Engine Cooling fan |
| F08 | - | 30A Pink | - | Automatic Transmission, GSM |
| F09 | - | - | 5A Tan | Control Module Engine |
| F10 | - | - | 15A Blue | Horn |
| F11 | - | - | 5A Tan / 10A Red / 25A Clear | Supply Secondary Loads |
| F14 | - | - | 7.5A Brown | 2015-2018: Heater "Blow By" |
| - | - | 5A Tan | 2015-2018: Pump Power "After Run" | |
| - | - | 15A Blue | WCAC Pump / Active Grille Shutters | |
| F15 | 40A Orange | - | - | Brake Control Module Pump |
| F16 | - | - | 5A Tan | Engine Control Module Power, Automatic Transmission |
| F17 | - | - | 10A Red / 15A Blue / 30A Green | Supply Primary Loads |
| F18 | - | - | 20A Yellow | 2015-2018: 12V Rear Cargo Outlet Ignition Powered |
| - | - | 5A Tan | 2020-2023: Intelligent Battery Sensor | |
| F19 | - | - | 7.5A Brown | Air Conditioner Compressor |
| F20 | - | - | 5A Tan | Electronic Power Four-Wheel Drive |
| F21 | - | - | 15A Blue | Fuel Pump |
| F22 | - | - | 10A Red / 20A Yellow | Power Control Module Engine |
| F23 | - | - | 30A Green | Heated Windshield - If Equipped |
| F24 | - | - | 15A Blue | Electronic Unit Supply Automatic Transmission |
| F30 | - | - | 20A Yellow | 12V Rear Cargo Outlet Constant Battery Powered (Customer Installed) |
| F82 | - | 20A Yellow | - | 2019-2023: Power Control Module Engine |
| F83 | - | 40A Green | - | Air Conditioning Fan |
| F84 | - | - | 30A Green | Power Supply All Wheel Drive |
| F87 | - | - | 5A Tan | Shift Lever Automatic Transmission |
| F88 | - | - | 7.5A Brown | Heated Outside Mirrors |
| F89 | - | - | 30A Green | Heated Rear Window |
| F90 | - | - | 5A Tan | 2015-2021: IBS Sensor (Battery State Of Charge) |
Advertisements
Body Computer Fuse Center Diagram

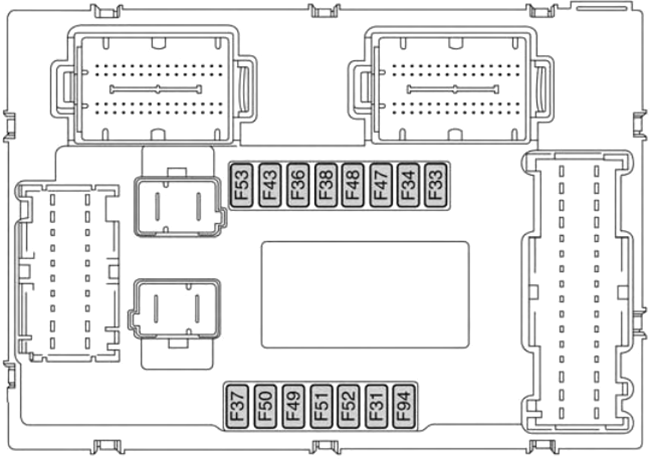

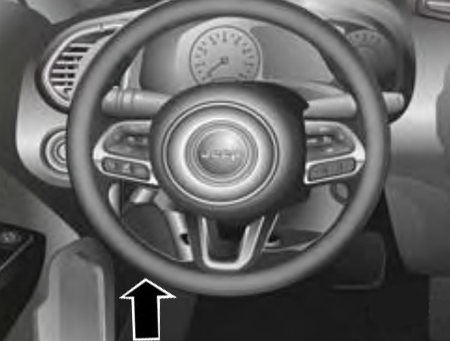

The controller is located at the left side of the steering column at the bottom of the instrument panel. For the fuse replacement see your authorized dealer.
| № | Mini Fuse | Description |
|---|---|---|
| F31 | 7.5A Brown | Flashes / Electrical Movement Front Seats / Fan Air Conditioning |
| F33 | 20A Yellow | 2015-2018: Power Window Front (Driver Side) 2019-2023: Power Window Front (Passenger Side) |
| F34 | 20A Yellow | 2015-2018: Power Window Front (Passenger Side) 2019-2023: Power Window Front (Driver Side) |
| F36 | 15A Blue | 2015-2018: Supply Uconnect System, Air Conditioning, Alarm, Power Holding Outside Mirrors, USB Port 2019-2023: Supply Uconnect System, Air Conditioning, USB Port, Rear Ceiling Lights (With Sunroof), E-Call, SGW |
| F37 | 10A Red | System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC, Brake Pedal Switch (NC) |
| F38 | 20A Yellow | Central Locking |
| F42 | 7.5A Brown | 2015-2018: Power Under Lock and Key 2019-2023: Power Under Lock and Key, Brake Control Electronics Module, Electric Power-Assisted Steering |
| F43 | 20A Yellow | Bi-directional Pump Washer |
| F47 | 20A Yellow | Power Rear Window (Driver Side) |
| F48 | 20A Yellow | Power Rear Window (Passenger Side) |
| F49 | 7.5A Brown | 2015-2018: Supply ParkSense, Spot Lights Front Dome, Mirror, Electric Motor Retractable Roof, Heated Front Seats, Stabilizer Battery, ESC System, ESL 2019-2023: Supply ParkSense, Mirror, Heated Front Seats, Stabilizer Battery, ESC System, S&S Inhibition Command, Blind Spot, Rain/Light Sensor, Humidity Sensor |
| F50 | 7.5A Brown | Supply Air Bag |
| F51 | 7.5A Brown | 2015-2018: Alarm Power, Front Courtesy Light, Air Conditioning Compressor, Brake Pedal Switch (NC), Plaque Automatic Transmission, Compass, Rear Camera, Leveling Headlights, Air Conditioning 2019-2023: Air Conditioning, Lane Departure Warning, Terrain Selector, Trailer Tow Module, Compass Module, Rear View Camera |
| F53 | 7.5A Brown | Supply IPC / Starter Device / System Keyless Enter-N-Go |
| F94 | 15A Blue | Power Socket |
Rear Cargo Fuse Box Diagram

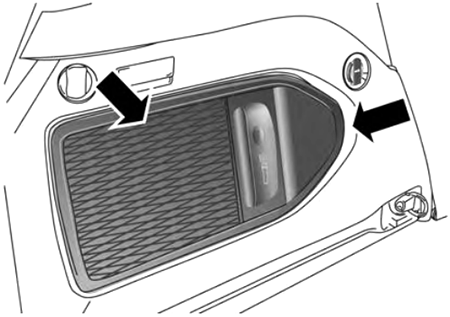

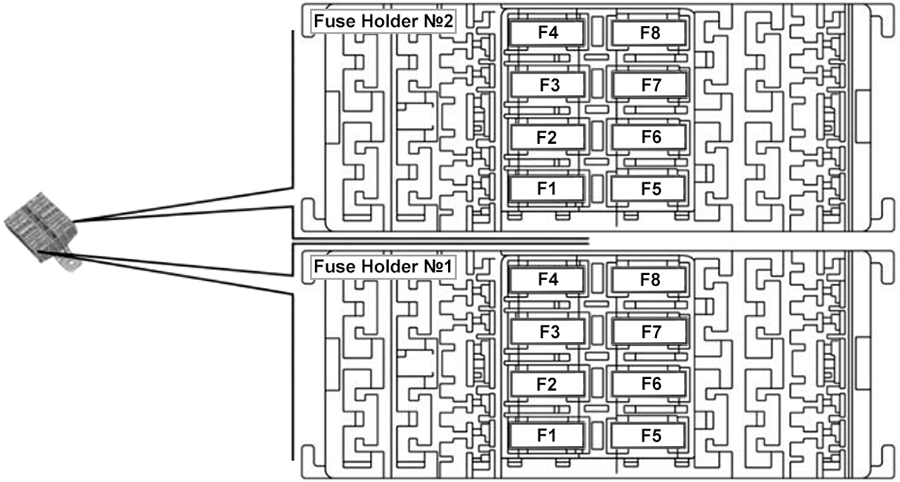

To access the fuses, remove the access door from the left rear panel of the rear cargo area. The fuses may be contained in two units. Fuse holder No.1 is located closest to the rear of the vehicle and fuse holder No.2 (if equipped with trailer towing) is located closest to the front of the vehicle.
| № | Mini Fuse | Description |
|---|---|---|
| F1 | 30A Blue | Power Inverter |
| F2 | 20A Yellow | HIFI Audio System |
| F3 | 20A Yellow | MY SKY |
| F4 | 7.5A Brown | 2015-2018: Lumbar Adjustment Front Seat (Driver Side) |
| F5 | 30A Green | Power Seat (Driver Side) |
| F6 | 7.5A Brown | 2015-2018: Power Seat (Driver Side And Passenger Side) 2019-2023: Lumbar Adjustment Front Seat (Driver Side) |
| F7 | 30A Green | 2015-2018: Lumbar Adjustment Front Seats (Driver Side And Passenger Side) |
| F8 | 20A Yellow | Heating Front Seats |
| - | 20A Yellow | Sun visor of the retractable roof |
| F1 | 10A Red | Controller Exterior Lighting On Trailer |
| F5 | 15A Blue | Controller Exterior Lighting Lights (Drivers Side) |
| F6 | 15A Blue | Controller Exterior Lighting Lights (Passenger Side) |
