Fuse box diagram (fuse layout), location, and assignment of fuses and relays for Dodge Durango (DN; 1998, 1999, 2000, 2001, 2002, 2003).
Checking and Replacing Fuses
To prevent damage to the electrical system due to short circuiting or overloading, each individual circuit is provided with a fuse. There are fuse blocks in the passenger compartment and in the engine compartment.
Note
- When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it suggests a problem in the circuit that must be corrected.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, gearbox system) or steering system blows, contact an authorized dealer.
Underhood Fuse Box Diagram

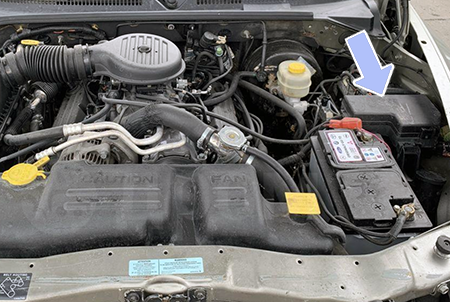

The electrical Power Distribution Center is located in the engine compartment near the battery. A label inside the latching cover of the center identifies each component for ease of replacement, if necessary.

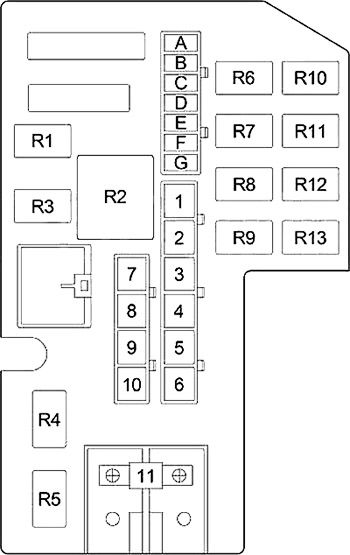

1998-2000
| № | A | Description |
|---|---|---|
| A | 15A | Powertrain Control Module, Fuel Injector / Coil On Plug 1~8, Ignition Coil, Oxygen Sensors & Capacitors 1 & 2 |
| B | 20A | Transmission Control Relay & Transmission Control Module |
| C | 20A | Fog Lamp Relay, Left/Right Fog Lamp & Daytime Running Lamp |
| D | 20A | Brake Lamp Switch |
| E | 15A | Left Headlamp |
| F | 25A | Combination Flasher |
| G | 15A | Right Headlamp |
| 1 | 20A | Powertrain Control Module, Fuel Pump Relay & Fuel Pump Module |
| 2 | 30A | Radiator Fan Relay |
| 3 | 30A | Automatic Shut Down Relay |
| 4 | 50A | Power Seat Switch & Rear Wiper / Defogger Switch |
| 5 | 40A | Blower Motor Relay |
| 6 | 50A | Relay/Fuse Block, Electric Brake & Trailer Tow Connector |
| 7 | 40A | Junction Block |
| 8 | 40A | Controller Anti-Lock Brake |
| 9 | 50A | Ignition Switch & Engine Starter Motor Relay |
| 10 | 40A | Ignition Switch |
| 11 | 140A | Generator |
| R1 | Wiper | |
| R2 | Blower Motor | |
| R3 | Starter | |
| R4 | Oxygen Upstream | |
| R5 | Fog Lamp | |
| R6 | Radiator Fan | |
| R7 | Transmission Control / Trailer | |
| R8 | Air Conditioner Compressor Clutch | |
| R9 | Automatic Shut Down (ASD) | |
| R10 | Oxygen Upstream | |
| R11 | Radiator Fan / Transmission Control | |
| R12 | Headlamp Flasher / HD LPS | |
| R13 | Fuel Pump | |

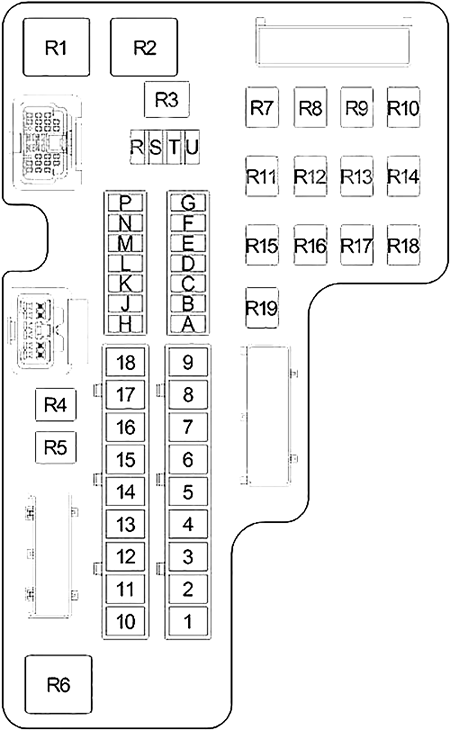

2001-2003
| № | A | Description |
|---|---|---|
| A | 20A | Transfer Case Control Module |
| B | 10A | A/C Compressor Clutch |
| C | 20A | Trailer Tow Connector |
| D | 20A | Junction Block & Front/Center/Rear Power Outlets |
| E | 20A | Ignition Switch |
| F | 20A | Transmission Control |
| G | - | - |
| H | 20A | Fog Lamp |
| J | 20A | Rear Wiper |
| K | 25A | Rear Blower Motor |
| L | - | - |
| M | - | - |
| N | - | - |
| P | - | - |
| R | - | - |
| S | - | - |
| T | 10A | Left/Right Front Park/Turn Signal Lamps, Left/Right Side Marker Lamp & License Lamp |
| U | 20A | Oxygen Sensors, Fuel Injectors Coil On Plugs, Powertrain Control Module & Ignition Coil |
| 1 | 20A/30A | Combination Flasher |
| 2 | 20A | Powertrain Control Module, Automatic Shut Down & Fuel Pump Module |
| 3 | 20A | Central Timer Module |
| 4 | 40A | Rear Window Defogger |
| 5 | 20A | Brake Lamp Switch |
| 6 | 30A | Electric Brake |
| 7 | 40A | Junction Block |
| 8 | 40A | Controller Anti-Lock Brake |
| 9 | 50A | Ignition Switch |
| 10 | 40A | Ignition Switch |
| 11 | 30A | Automatic Shut Down |
| 12 | 20A | Central Timer Module |
| 13 | 40A | Ignition Switch |
| 14 | 50A | Driver/Passenger Power Seat Switch |
| 15 | 50A | Radiator Fan Relay & Driver/Passenger Power |
| 16 | 50A | Engine Starter Motor |
| 17 | 50A | Ignition Switch |
| R1 | Radiator Fan | |
| R2 | Automatic Shut Down (ASD) | |
| R3 | - | |
| R4 | Rear Blower Motor | |
| R5 | - | |
| R6 | EBL | |
| R7 | Fuel Pump | |
| R8 | - | |
| R9 | Air Conditioner Compressor Clutch | |
| R10 | Fog Lamp | |
| R11 | - | |
| R12 | Oxygen Sensor | |
| R13 | - | |
| R14 | Transmission Control | |
| R15 | - | |
| R16 | - | |
| R17 | Starter | |
| R18 | Front Wiper | |
| R19 | Rear Wiper | |
Advertisements
Interior Fuse Box Diagram

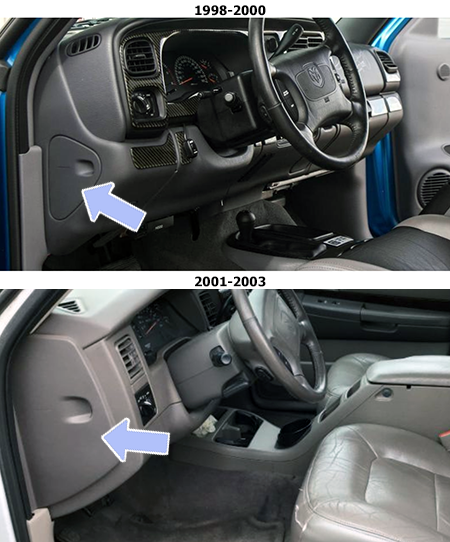

It is located just inboard of the left end of the instrument panel, behind the panel surface. It is accessible through a snap-in cover. Refer to the label on the backside of the fuse block cover for the proper fuse amperage and position.

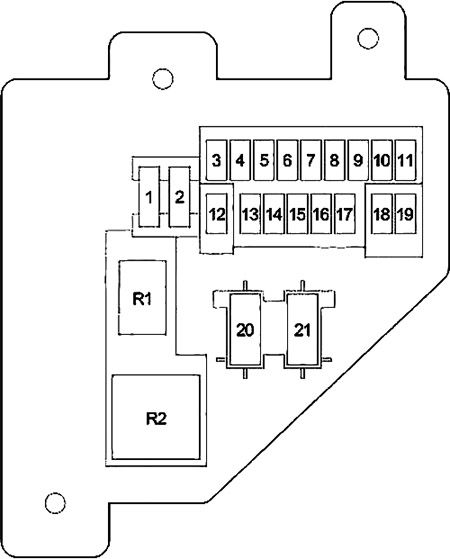

1998-2000
| № | A | Description |
|---|---|---|
| 1 | 20A | Brake Lamp Switch or Headlamp Relay & A/C Compressor Clutch Relay |
| 2 | 15A/20A | Daytime Running Lamp, Passenger Door Lock Switch, Park/Neutral Position Switch |
| 3 | 10A | Controller Anti-Lock Brake |
| 4 | 15A | Power Amplifier |
| 5 | 5A | Headlamp Switch, Overhead A/C Control, Instrument Cluster, Radio, Rear Wiper/Defogger Switch, Ash Receiver Lamp & A/C-Heater Control |
| 6 | 20A | Central Timer Module, Multifunction Switch, Wiper Motor, Wiper Relay & Junction Block |
| 7 | 15A | A/C Low Temperature Cut-Out Switch, Blower Motor Relay, A/C Compressor Clutch Relay & Rear Wiper/Defogger Switch |
| 8 | 10A | Radio |
| 9 | 10A | Automatic Shut Down Relay, Fuel Pump Relay & Powertrain Control Module |
| 10 | 15A | - |
| 11 | 10A | Diagnostic Connector, Overhead Console, Automatic Day/Night Mirror, Central Timer Module & Duty Cycle Evap/Purge Solenoid |
| 12 | 15A | Left/Right Courtesy Lamp, Data Link Connector, Instrument Cluster, Glove Box Lamp, Radio, Left/Right Visor/Vanity Mirror, Front/Rear Dome Light, Overhead Console, Power Mirror Switch, Liftgate Lamp, Underhood Lamp & Rear Wiper Motor |
| 13 | 15A/20A | Central Timer Module, Relay/Fuse Block, Driver/Passenger Power Door Lock Switch & Driver Power Door Lock |
| 14 | 15A | Headlamp Switch |
| 15 | 15A | Cigar Lighter |
| 16 | 15A | Combination Flasher |
| 17 | 10A | Instrument Cluster |
| 18 | 10A | Airbag Control Module |
| 19 | 10A | Airbag Control Module |
| 20 | 25A | Power Window / Door Lock Switch |
| 21 | - | - |
| R1 | Horn | |
| R2 | Combination Flasher | |

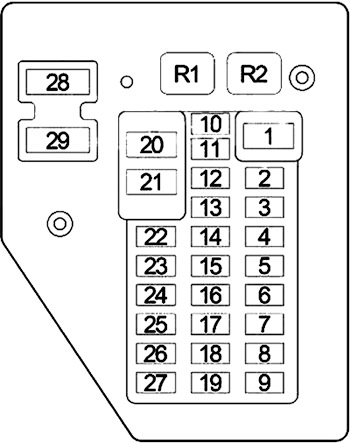

2001-2003
| № | A | Description |
|---|---|---|
| 1 | 15A | Sentry Key Immobilizer, Instrument Cluster, Radio, Center Console Lamp, Overhead Console, Front/Rear Dome Lamp, Glove Box Lamp/Switch, Data Link Connector, Driver Door Module, Right/Left Visor/Vanity Mirror & Liftgate Lamp |
| 2 | 20A | Horn & Clockspring |
| 3 | - | - |
| 4 | 20A | Central Timer Module, Headlamp Switch, Left/Right Tail Lamp Assembly, Left/Right Front Park/Turn Signal Lamps, Left/Right Front Side Marker Lamp & License Plate Lamp |
| 5 | 20A | Front Wiper Relay, Front Wiper Motor & Central Timer Module |
| 6 | - | - |
| 7 | - | - |
| 8 | 10A | Transmission Control Module & Instrument Cluster |
| 9 | 5A | Rear A/C Heater Control, Overhead Console, Transfer Case Selector Switch, Shift Bezel Lamp, Radio, Cigar Lighter, A/C Heater Control & Instrument Cluster |
| 10 | 10A | Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay & Sentry Key Immobilizer |
| 11 | 10A | A/C Compressor, Proportional Purge Solenoid, Automatic Day/Night Mirror, Overhead Console, Central Timer Module & Transfer Case Selector Switch |
| 12 | 10A | Engine Starter Motor Relay & Transmission Control Module |
| 13 | 15A | Amplifier |
| 14 | 10A | Instrument Cluster |
| 15 | 10A | Driver/Passenger Power Mirror |
| 16 | - | - |
| 17 | 15A | Cigar Lighter |
| 18 | 10A | Radio |
| 19 | 10A | Combination Flasher |
| 20 | 10A | Airbag Control Module |
| 21 | 10A | Airbag Control Module |
| 22 | 20A | Heated Seat Module & Passenger/Driver Heated Seat Module |
| 23 | - | - |
| 24 | 15A | Rear Window Defogger & Rear Blower Motor |
| 25 | 10A | A/C Heater Control |
| 26 | 15A | Transmission Solenoid, Transmission Range Sensor & Passenger Door Power Lock Switch |
| 27 | 10A | Controller Anti-Lock Brake |
| 28 | 25A CB | Driver Door Module (Power Window) |
| 29 | - | - |
| R1 | Horn | |
| R2 | Park Lamp | |
